Perforated edges 240 Nordviq

  • Rivande universalskär för vitvägsplogning, isrivning och grushyvling.
  • Standard håldelning cc305mm finns inbyggt i mönstret.

Sökord: Plogstål/Vägstål/Plogskär

SKU
perfoskar-240-nordviq

Variations

Size
Article
Note
Weight
Reference
11mm
692x11x240
mont m 3 bolt
8.06 kg
14010564
11mm
792x11x240
mont m 3 bolt
10.01 kg
14010565
11mm
915x11x240 / 3 ft
mont m 3 bolt
11.40 kg
14010566
11mm
1220x11x240 / 4 ft
mont m 4 bolt
15.91 kg
14010567
11mm
1525x11x240 / 5 ft
mont m 5 bolt
19.00 kg
14010568
11mm end-bent
(692) 740x11x240
mont m 3 bolt
9.05 kg
14010869
11mm end-bent
(792) 850x11x240
mont m 3 bolt
12.05 kg
14010569
11mm end-bent
(915) 980x11x240
mont m 3 bolt
14.40 kg
14010570
11mm end-bent
(1220) 1280x11x240
mont m 4 bolt
18.45 kg
14010571
16mm - PS completely perfom patterned
915x16x240 Nordviq
mont m 3 bolt
18.46 kg
14010485
16mm - PS completely perfom patterned
1220x16x240 Nordviq
mont m 4 bolt
24.63 kg
14010486
16mm - PS completely perfom patterned
1525x16x240 Nordviq
mont m 5 bolt
30.84 kg
14010487
Description

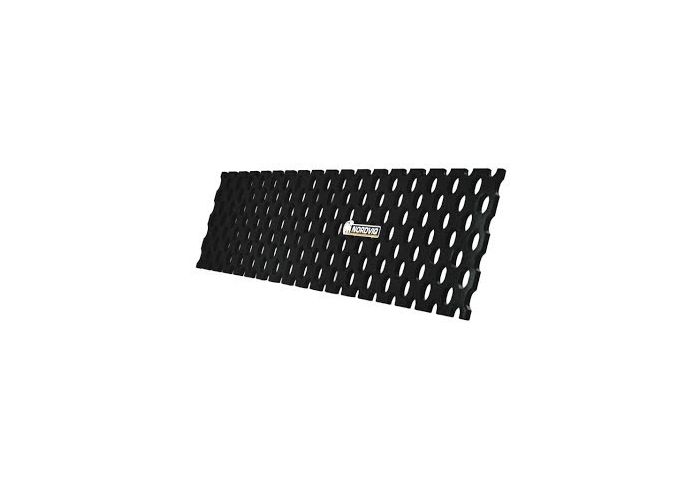

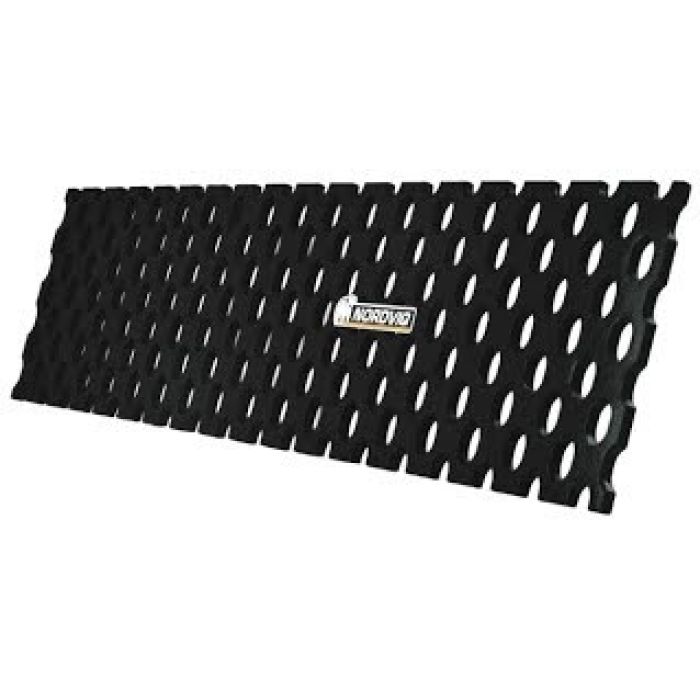

Perforated plow edge both straight and end bent for ice demolition, leveling, plowing and gravel planing. The perforated plow edge is the most flexible steel in Nordviq assortment. The perforated pattern with built in nordic holes (cc305 mm) gives the perforated edge several unique benefits.

Can be adjusted in many ways on the blade to get the most out of the steel. Channel icy roads which keeps the sand on the road and increases the road's friction. Goes easier in gravel planing than both pins and flat edges and crushes less gravel on the summer than flat edges do.

Mounted with wedge and wedgebolt or screwed with snow plow screw KH M16 and flange lock nut. Both the wedge bolt and snow plow screw KH locks in the holes if inserted from the side of the edge.

Unique steel quality specially hardened Nordviq HB500 Plus.

More Information
More Information
Hole Pitch C-C 305 mm (1 fot, Nordisk standard)
Length/Tolerance +0/-10 mm
Attachment Vägstålskruv KH M16 eller kilbult 16mm
