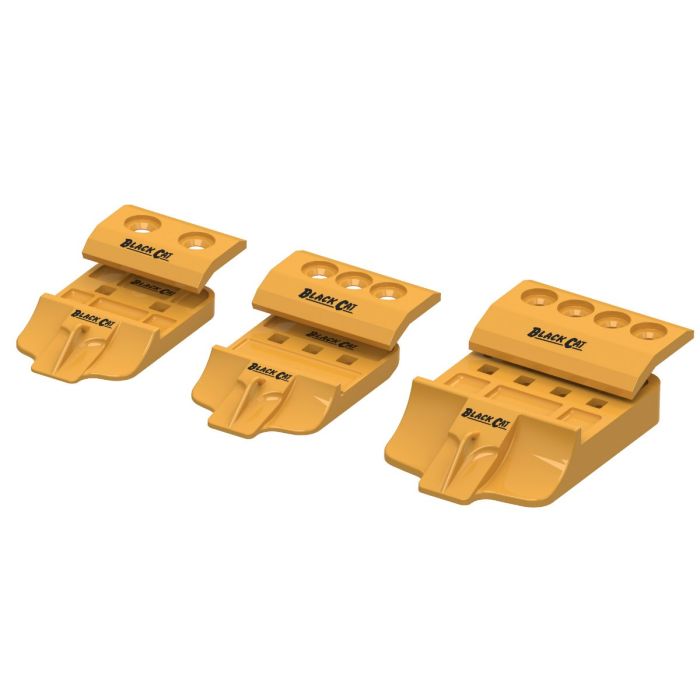

Half arrow middle segment Black Cat
- Used mainly between tooth attachments.
- Sharp and yet very wear-resistant parts.
- Makes the bucket easier to fill.
- Long-lasting.
SKU
half-arrow-mellansegment-black-cat
Variations
Size
Article
Note
Weight
Reference
Black Cat Half Arrow Segment
Half arrow segment 195x35x276 4T6692 CTR
2-hole, FH 1 "|_|A"
11.20 kg
Black Cat Half Arrow Segment
Half arrow segment 300x45x465 1359544 CTR
2-hole, FH 1-1/4 "|_|B"
37.60 kg
Black Cat Half Arrow Segment
Half arrow segment 304x45x465 1359545 RH
2-hole, FH 1-1/4 "|_|B"
39.00 kg
Black Cat Half Arrow Segment
Half arrow segment 304x45x465 1359546 LH
2-hole, FH 1-1/4 "|_|B"
39.00 kg
Black Cat Half Arrow Segment
Half arrow segment 288x45x464 1133140 CTR
2-hole, FH 1-1/4 "|_|C"
36.38 kg
Black Cat Half Arrow Segment
Half arrow segment 328x45x464 1133141 RH
2-hole, FH 1-1/4 "|_|C"
42.64 kg
Black Cat Half Arrow Segment
Half arrow segment 328x45x464 1133142 LH
2-hole, FH 1-1/4 "|_|C"
42.64 kg
Black Cat Half Arrow Segment
Half arrow segment 312x51x478 1167460 (9W5734) CTR
3-hole, FH 1-1/4 "|_|D"
38.60 kg
Black Cat Half Arrow Segment
Half arrow segment 312x51x478 1167461 RH
3-hole, FH 1-1/4 "|_|D"
41.05 kg
Black Cat Half Arrow Segment
Half arrow segment 312x51x478 1167462 LH
3-hole, FH 1-1/4 "|_|D"
41.05 kg
Black Cat Half Arrow Segment
Half arrow segment 342x80/51x478 1099080 CTR
3-hole, FH 1-1/4 "|_|E"
41.60 kg
Black Cat Half Arrow Segment
Half arrow segment 342x80/51x478 1099081 RH
3-hole, FH 1-1/4 "|_|E"
43.30 kg
Black Cat Half Arrow Segment
Half arrow segment 342x80/51x478 1099082 LH
3-hole, FH 1-1/4 "|_|E"
43.30 kg
Black Cat Half Arrow Segment
Half arrow segment 406x50x420 2571782 CTR
4-hole, FH 1-1/4 "|_|F"
57.30 kg
Black Cat Half Arrow Segment
Half arrow segment 406x50x420 2571783 RH
4-hole, FH 1-1/4 "|_|F"
55.00 kg
Black Cat Half Arrow Segment
Half arrow segment 406x50x420 2571784 LH
4-hole, FH 1-1/4 "|_|F"
55.00 kg
Black Cat Half Arrow Segment
Half arrow segment 410x64x542 2755460 (4T6760) CTR
4-hole, FH 1-1/4 "|_|G"
85.50 kg
Black Cat Half Arrow Segment
Half arrow segment 436x64x542 2755461 (4T6761) RH
4-hole, FH 1-1/4 "|_|G"
94.50 kg
Black Cat Half Arrow Segment
Half arrow segment 436x64x542 2755462 (4T6762) LH
4-hole, FH 1-1/4 "|_|G"
94.50 kg
Black Cat Half Arrow Segment
Half arrow segment 410x83x542 2755470 CTR
4-hole, FH 1-1/4 "|_|H"
108.00 kg
Black Cat Half Arrow Segment
Half arrow segment 436x83x542 2755471 RH
4-hole, FH 1-1/4 "|_|H"
123.50 kg
Black Cat Half Arrow Segment
Half arrow segment 436x83x542 2755472 LH
4-hole, FH 1-1/4 "|_|H"
123.50 kg
Description
Black Cat half arrow segment lasts a long time, makes the bucket easier to fill and reduces wear on the base edge. Can be used on both loader buckets and exvators between the teeth. The range includes segments suitable for most blunt edges with teeth according to type Cat design. The wear parts in the molded segments are smartly distributed so that a maximum of parts can be worn out before replacement of the segment. Black Cat segments have a unique tooth-design which allows them to enter the material easily. Can be used with or without cover plates.
If desired, we design and manufacture customized bucket lips and base edges for these half arrow segments.
