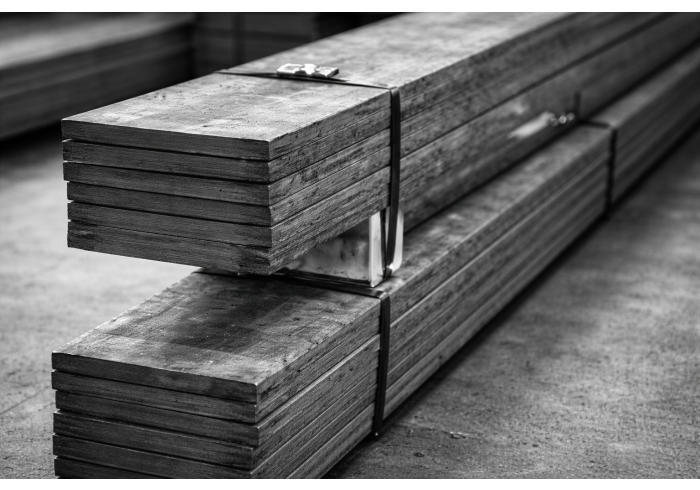

Wear bars HB500 - Bucket steel

  • Rectangular wear bars.
  • Hardened, weldable. All wear bars in HB500.
  • Default lengths 6 and 3 meters.
  • Stocked range from 10 to 40mm and widths from 80 to 250mm.
SKU
slitribb-hb500-skopstal

Variations

Article
Weight
Reference
10x 80x3000
18.84 kg
14010142
10x 80x6000
37.68 kg
14010143
10x100x3000
23.40 kg
14010148
10x100x6000
46.80 kg
14010149
10x150x3000
35.33 kg
14010897
10x150x6000
70.65 kg
14010896
12x 80x3000
22.61 kg
14010426
12x100x3000
28.26 kg
14010150
12x100x6000
56.52 kg
14010151
12x150x3000
42.39 kg
14010166
12x150x6000
84.78 kg
14010167
12x200x3000
56.52 kg
14010176
12x200x6000
112.30 kg
14010177
15x 80x3000
28.26 kg
14010144
15x 80x6000
56.52 kg
14010145
15x100x3000
35.35 kg
14010152
15x100x6000
70.65 kg
14010153
15x150x3000
53.00 kg
14010169
15x150x6000
106.00 kg
14010168
20x 80x3000
37.68 kg
14010147
20x 80x6000
75.36 kg
14010146
20x100x3000
47.10 kg
14010154
20x100x6000
94.20 kg
14010155
20x125x6000
117.70 kg
14011897
20x150x3000
70.65 kg
14010171
20x150x6000
141.30 kg
14010170
20x200x3000
94.20 kg
14010180
20x200x6000
188.40 kg
14010181
25x100x3000
58.88 kg
14010156
25x100x6000
117.75 kg
14010157
25x130x3000
76.50 kg
14010427
25x130x6000
153.08 kg
14010326
25x150x3000
88.31 kg
14010172
25x150x6000
176.63 kg
14010173
25x200x3000
117.75 kg
14010182
25x200x6000
235.50 kg
14010183
30x100x3000
70.65 kg
14010158
30x100x6000
141.30 kg
14010159
30x130x3000
91.80 kg
14011423
30x130x6000
183.69 kg
14010327
30x150x3000
106.00 kg
14011120
30x150x6000
211.95 kg
14011119
30x200x3000
141.30 kg
14010184
30x200x6000
282.60 kg
14010185
30x250x3000
176.63 kg
14010187
30x250x6000
353.25 kg
14010186
40x100x3000
94.20 kg
14010160
40x100x6000
188.40 kg
14010161
Description

Partrex has a wide range of wear steel, also called wear bars or wear irons, for excavator buckets and loader buckets. We stock wear steel in thicknesses from 10 to 40 mm in high quality HB500 steel. The steels are rounded and hardened and maintain maximum hardness and even structure from edge to edge.

Most of our wear steel is manufactured by Swebor Stål in Jokkmokk, but we also buy from other Nordic manufacturers. For dimensions other than below, such as thicker dimensions, we have it manufactured based on need.
